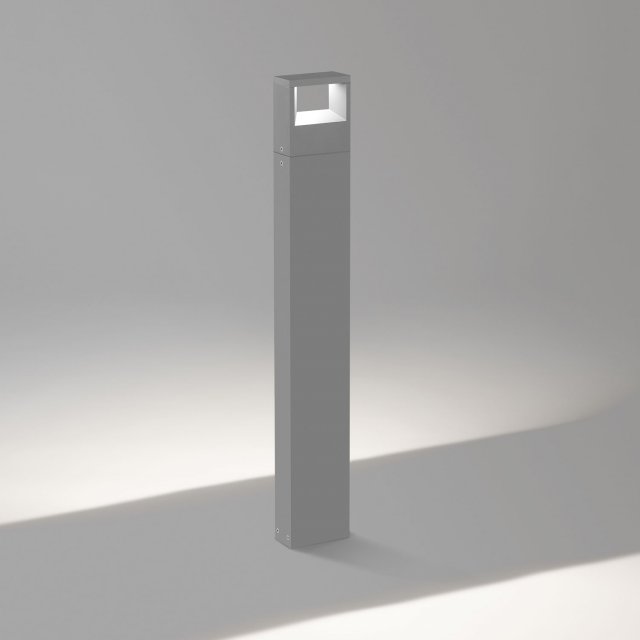

WALKER II S 70 930 A
Alu Grey - 22622 9300 A
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Surface mounted |
| IP | IP54 |
| Weight (kg) | 2.6 |
| Adjustability | non adjustable |
| Information | INCL.LED POWER SUPPLY 250mA-DC |
Electrical
| Voltage | 100-240V / 50-60Hz |
| Class | II |
| Dimming type | non-dimmable |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | LED cluster 3,5W / CRI>90 (R9: 68) / 3000K / 470lm |
| TM-30 Values | Rf: 89 / Rg: 97 |
| SDCM | SDCM3 |
| LM80 | L70 > 60000 |
| LED technics (light source) | 470lm // 3,5W // 135lm/W |
| LED technics (luminaire) | 255lm // 4W // 63lm/W |
Additional
| Options | PIN 17
CBOX
IP68 CONNECTION KIT
IP68 CONNECTOR 3P |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Pins and plates for bollards
Waterproof connection parts
| Product name | Information | ||
|---|---|---|---|
 | CBOX | INCL.2 x PG13,5 / 1 x PG11 | Add to pinlist |
 | IP68 CONNECTION KIT | CABLE Ø 7,5-10 mm MAX.3 x 4mm² 4A 250V-AC | Add to pinlist |
 | IP68 CONNECTOR 3P | CABLE Ø 7,5-12 mm MAX.3 x 1,5mm² 4A 250V-AC | Add to pinlist |
