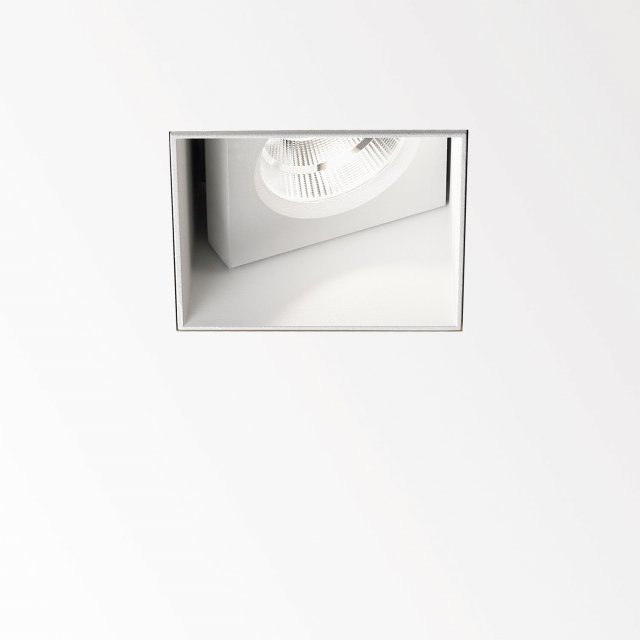

CARREE TRIMLESS OK LED 9-SOFT A
CARREE TRIMLESS ADJUSTABLE
Alu Grey - 202 510 1902 A
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-1800K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | KIT |
| Min. recessed depth (mm) | 85 |
| IP | IP23/20 |
| Weight (kg) | 0.3 |
| Adjustability | 0° to 25° swiveling |
| Information | REFLECTOR FL-40°
EXCL.DIMMABLE LED POWER SUPPLY 650mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 9,5W / CRI>90 / 2700K-1800K / 760lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LED technics (light source) | 760lm // 9,5W // 82lm/W |
| LED technics (luminaire) | 513lm // 10,9W // 47lm/W |
Additional
| Requirements | DIMMABLE LED POWER SUPPLY 650mA-DC
MOUNTING KIT 75 TRIMLESS
MOUNTING KIT 75 TRIMLESS O.F.A. |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI POWER DIM1 | 220-240V | II | 1-10V | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER DIM5 | 220-240V | II | DALI | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER COMPACT WDL | 220-240V | II | WDL = wireless dimmable | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 250-900 / 20W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 48 | 2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 4(4) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 3(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 6(4) | Add to pinlist |
Mounting kits
| Product name | Cutout shape | Cutout size | Thickness of mounting surface | ||
|---|---|---|---|---|---|
 | MOUNTING KIT 75 TRIMLESS | round | 121 | 9 or 12 | Add to pinlist |
 | MOUNTING KIT 75 TRIMLESS O.F.A. | round | 182 | - | Add to pinlist |
