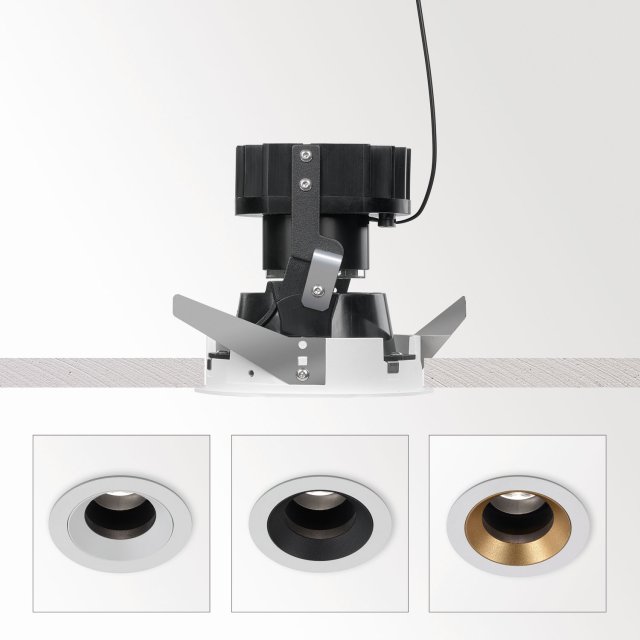

iMAX II ROUND ADJUSTABLE 9-SOFT W
White - 24212 9020 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-1800K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 98 |
| Min. recessed depth (mm) | 125 |
| Thickness of mounting surface (mm) | max.25 |
| IP | IP20 or IP54 (with TUBE IP) |
| Weight (kg) | 0.4 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | REFLECTOR FL-40°
EXCL.DIMMABLE LED POWER SUPPLY 650mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 9,5W / CRI>90 / 2700K-1800K / 760lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LED technics (light source) | 760lm // 9,5W // 82lm/W |
| LED technics (luminaire) | 427lm // 10,9W // 39lm/W |
Additional
| Requirements | DIMMABLE LED POWER SUPPLY 650mA-DC
iMAX II TUBE ROUND |
| Options | MOUNTING KIT FLUSH iMAX II ROUND |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
Finish your product
| Product name | Finishing colour | IP | ||
|---|---|---|---|---|
 | iMAX II TUBE ROUND IP B | Black | IP54 | Add to pinlist |
 | iMAX II TUBE ROUND IP FG | Flemish Gold | IP54 | Add to pinlist |
 | iMAX II TUBE ROUND IP W | White | IP54 | Add to pinlist |
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI POWER DIM1 | 220-240V | II | 1-10V | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER DIM5 | 220-240V | II | DALI | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER COMPACT WDL | 220-240V | II | WDL = wireless dimmable | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI POWER 250-900 / 20W DIM8 | 220-240V | II | mains (phase cut-off) | IP20 | round | 48 | 2 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 4(4) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 3(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 6(4) | Add to pinlist |
