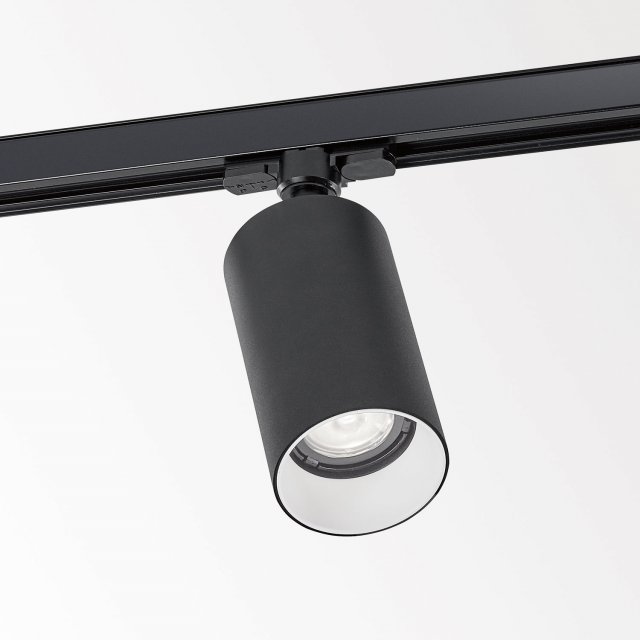

MAXISPY DYNAMIC FOCUS 930 ADM WD B

Black - 19880 930W B

Beam angle

CRI

CCT

General

Location	Indoor
IP	IP20
Weight (kg)	1.4
Adjustability	0° to 90° swiveling, 355° rotatable
Information	ADJUSTABLE BEAM 15°-50° WIRELESS DIMMING 3F MULTI ADAPTER

Electrical

Class	I
Dimming type	WDL = wireless dimmable
Energy class	F
Certificates	CB, EAC

Lightsource

Light source	LED
LED information	LED array 17W / CRI>90 / 3000K / 1500lm
LED technics (light source)	1500lm // 17W // 88lm/W
LED technics (luminaire)	724lm // 20W // 37lm/W

Additional

Requirements

MAXISPY TUBE
TRACK 3F

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Compatibele tracks

TRACK 3F DIM H

TRACK 3F DIM H 1m B

Product name	Reference number
TRACK 3F DIM H 1m	200 14 410
TRACK 3F DIM H 2m	200 14 420
TRACK 3F DIM H 3m	200 14 430

Black

White

Finish colours

TRACK 3F DIM IN

TRACK 3F DIM IN 1m B

Product name	Reference number
TRACK 3F DIM IN 1m	200 13 410
TRACK 3F DIM IN 2m	200 13 420
TRACK 3F DIM IN 3m	200 13 430

Black

White

Finish colours

TRACK 3F DIM ON

TRACK 3F DIM ON 1m ANO

Product name	Reference number
TRACK 3F DIM ON 1m	200 12 410
TRACK 3F DIM ON 2m	200 12 420
TRACK 3F DIM ON 3m	200 12 430

Black

White

Finish colours
