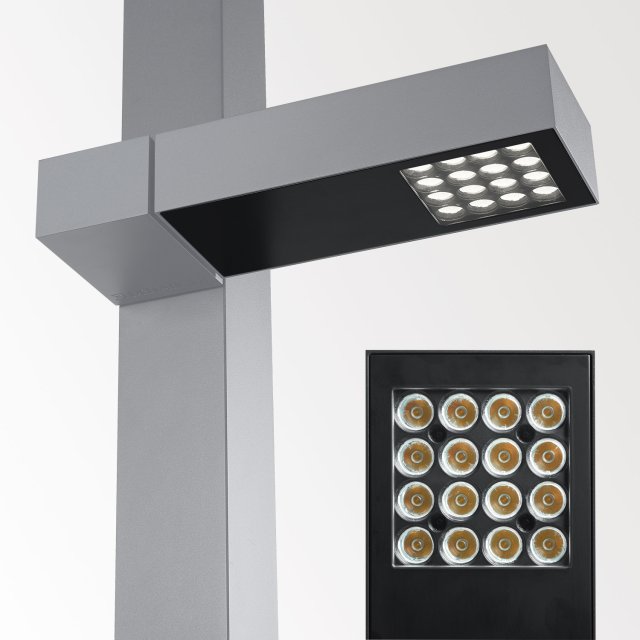

POLESANO 830 SPOT A-B
Alu Grey-Black - 43 11 831 A-B
CRI
Beam angle
CCT

General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Pole |
| Installation | Pole top |
| IP | IP66 |
| IK | IK08 |
| Weight (kg) | 5 |
| Adjustability | 360° swiveling, 360° rotatable |
| Information | 16 x LENS SP-15°
INCL.DIMMABLE LED POWER SUPPLY 900mA-DC
λ > 0,9
Inrush current : 32A - 355µs @ 230V-AC
Max. 10 units on circuit breaker B 16A @ 230V-AC (13 units on B 20A) |
Electrical
| Voltage | 220-240V / 0|50-60Hz |
| Class | I |
| Dimming type | DALI |
| Energy class | D |
| Certificates | CB, EAC, ENEC, ENEC+, RCM |
Lightsource
| Light source | LED |
| LED information | LED cluster 41,6W / CRI>80 (R9: 64) / 3000K / 4864lm |
| LED technics (light source) | 4864lm // 41,6W // 117lm/W |
| LED technics (luminaire) | 3867lm // 47,8W // 81lm/W |
Additional
| Remarks | |
| Requirements | POLESANO POLE |
| Accessories | HONEYCOMB S105
LINEAR SPREAD LENS S105 |
Technical data was measured in optimum conditions.
