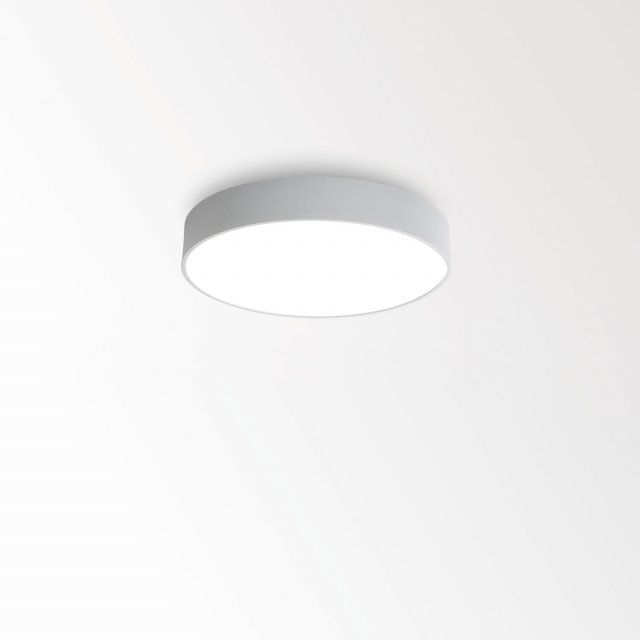

SUPERNOVA XS PIVOT 260 DIM5 W
White - 274 88 2515 ED5 W
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP40 |
| Weight (kg) | 1.8 |
| Adjustability | 0° to 45° swiveling, 360° rotatable |
| Information | INCL.PC SBL
INCL.DIMMABLE LED POWER SUPPLY 600mA-DC / 15W |
Electrical
| Voltage | 110-240V / 50-60Hz |
| Class | I |
| Dimming type | DALI |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED cluster 15W / CRI>80 / 3000K / 1580lm |
| LED technics (light source) | 1580lm // 15W // 105lm/W |
| LED technics (luminaire) | 1139lm // 17,2W // 66lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Miscellaneous control equipment
| Product name | Voltage | Class | Dimming type | ||
|---|---|---|---|---|---|
 | WIRELESS CONTROL DIM5 | 220-240V | II | WDL = wireless dimmable | Add to pinlist |
