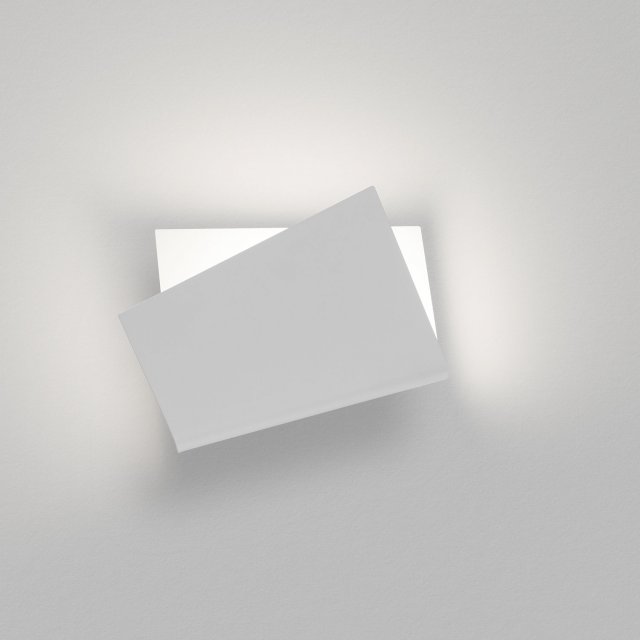

BREESS 25 927 DIM8 W
White - 24511 9208 W
CRI
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Wall |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 1.7 |
| Adjustability | non adjustable |
| Information | INCL.DIMMABLE LED POWER SUPPLY 350mA-DC
Design by Luc Ramael |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | II |
| Dimming type | mains (phase cut-off) |
| Energy class | E |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 7,1W / CRI>90 (R9: 60) / 2700K / 779lm |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 779lm // 7,1W // 110lm/W |
| LED technics (luminaire) | 177lm // 8,2W // 22lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Miscellaneous control equipment
| Product name | Voltage | Class | Dimming type | ||
|---|---|---|---|---|---|
 | WIRELESS CONTROL DIM8 | 100-240V | II | WDL = wireless dimmable | Add to pinlist |
