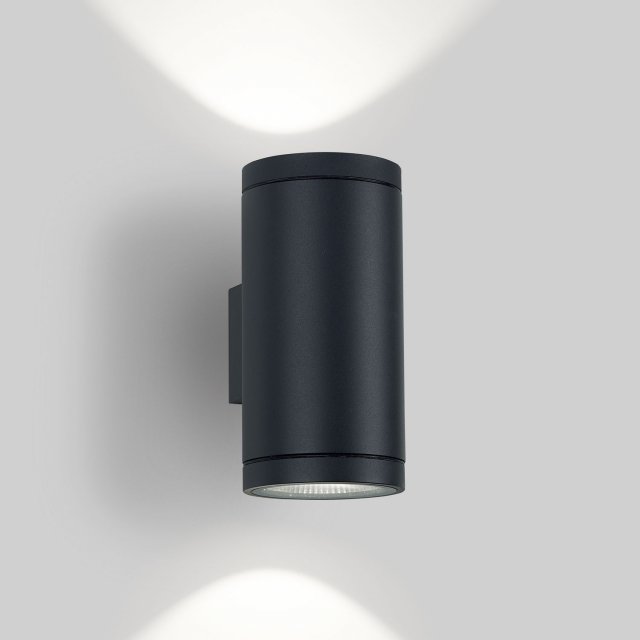

DOX 100 DOWN-UP LED N
Anthracite - 232 03 09 N
CRI
Beam angle
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Wall |
| Installation | Surface mounted |
| IP | IP65 |
| IK | IK03 |
| Weight (kg) | 1.2 |
| Adjustability | non adjustable |
| Information | 2 x REFLECTOR FL-35°
INCL.DIMMABLE LED POWER SUPPLY 500mA-DC |
Electrical
| Voltage | 230V / 50Hz |
| Class | I |
| Dimming type | mains (phase cut-off) |
| Energy class | D |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | 2 x (LED 9W / CRI>80 / 3000K / 1070lm) |
| LED technics (light source) | 2140 lm // 17 W // 123 lm/W |
| LED technics (luminaire) | 1911lm // 20,7W // 92lm/W |
Technical data was measured in optimum conditions.
