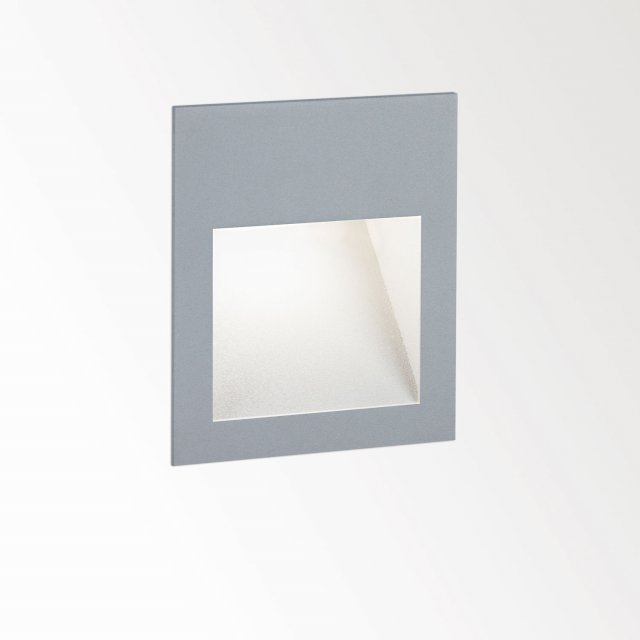

HELI X SCREEN LED NW A
HELI SCREEN FOR OUTDOOR
Alu Grey - 202 04 24 A
CRI
CCT
General
| Location | Indoor, Outdoor |
| CCT | 4000K |
| Fixation | Wall |
| Installation | Recessed |
| Cutout shape | rectangle |
| Cutout size (mm) | 75 x 87 |
| Min. recessed depth (mm) | 60 |
| IP | IP54 |
| IK | IK03 |
| Weight (kg) | 0.3 |
| Adjustability | non adjustable |
| Information | EXCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | EAC |
Lightsource
| Light source | LED |
| LED information | LED array 1W / CRI>80 (R9: 26) / 4000K / 134lm |
| TM-30 Values | rf: 87 / Rg: 97 |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L90B10 > 150000 |
| LED technics (light source) | 134lm // 1W // 134lm/W |
| LED technics (luminaire) | 20lm // 1,2W // 17lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM |
| Options | CONCRETE BOX 187 |
Technical data was measured in optimum conditions.
