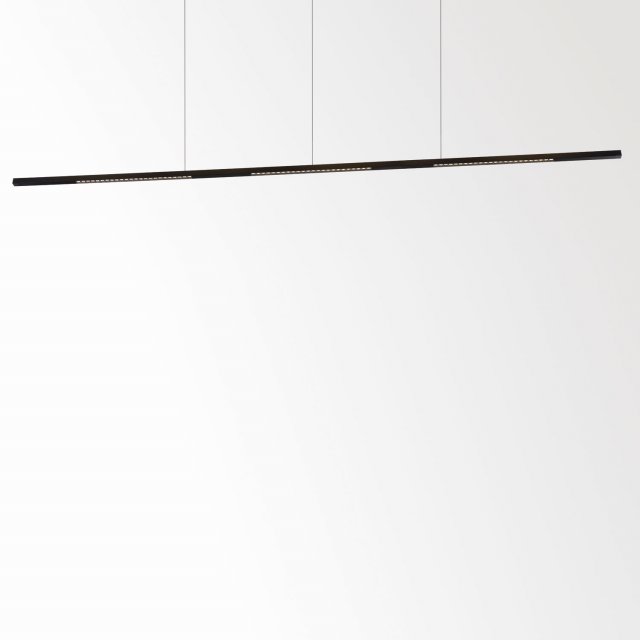

INFORM SQ P282-6 DOWN 83067 B-B
INFORM 28 PENDANT
Black-Black - 25519 8320 B-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Suspended |
| IP | IP20 |
| Weight (kg) | 1.9 |
| Adjustability | non adjustable |
| Information | 72 x REFLECTOR FL-67°
EXCL.LED POWER SUPPLY 600/900mA-DC
INCL.3 x CABLE SUSPENSION SINGLE AUTO. 1,6m
POWER VIA CABLE SUSPENSION
MELANOPIC LIGHT TECHNOLOGY |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | C |
| Certificates | CB, ENEC, EPD |
Lightsource
| Light source | LED |
| LED information | 3 x (LED cluster 6,6-10,1W / CRI>80 (R9: 50) / 3000K / 1126-1651lm) |
| TM-30 Values | Rf: 85 / Rg: 94 |
| SDCM | SDCM3 |
| Riskgroup | RG1 |
| LM80 | L90 > 60000 |
| LED technics (light source) | 4953lm // 30,3W // 163lm/W |
| LED technics (luminaire) | 4324lm // 34,8W // 124lm/W |
Additional
| Requirements | INFORM SQ POWERBOX 50W (DIM5)
INFORM POWER SUPPLY 45W + SUSPENSION+CONNECTION ST |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
requirement
Electric connection parts
| Product name | Class | ||
|---|---|---|---|
 | SUSPENSION + CONNECTION ST B | III | Add to pinlist |
 | SUSPENSION + CONNECTION ST W | III | Add to pinlist |
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | INFORM POWER SUPPLY 45W DIM5 | 220-240V | I | DALI | IP20 | - | - | 1 | Add to pinlist |
 | INFORM POWER SUPPLY 45W | 220-240V | I | non-dimmable | IP20 | - | - | 1 | Add to pinlist |
