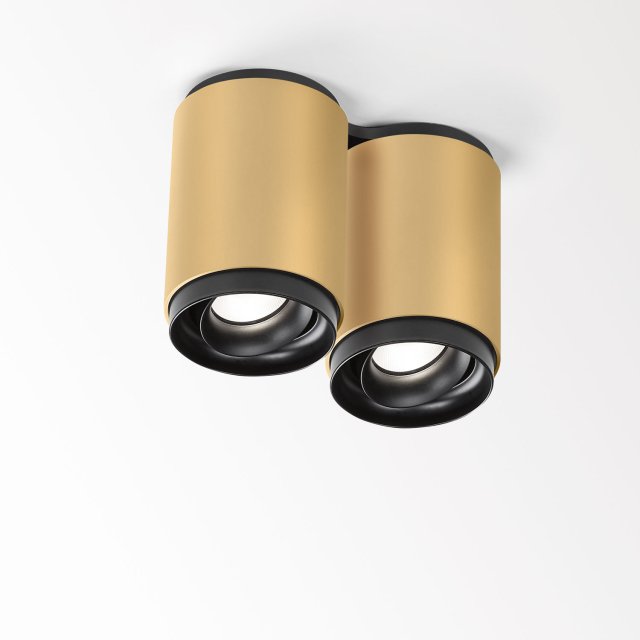

LINK S 2 92733 DIM8 FG

LINK S 2 92733 DIM8 FG

Flemish Gold - 13817 9228 FG
CRI
Beam angle
CCT
Add to pinlist
Interesting projects

General

Location
Indoor
CCT
2700K
Fixation
Ceiling
Installation
Surface mounted
IP
IP20
Weight (kg)
1.4
Adjustability
0° to 30° swiveling, 355° rotatable
Information
REFLECTOR FL-33° INCL.DIMMABLE LED POWER SUPPLY 350mA-DC

Electrical

Voltage
220-240V / 50-60Hz
Class
I
Dimming type
mains (phase cut-off)
Energy class
E
Certificates
CB, EAC, ENEC

Lightsource

Light source
LED
LED information
2 x (LED array 7,1W / CRI>90 (R9: 60) / 2700K / 779lm)
TM-30 Values
rf: 89 / Rg: 100
SDCM
SDCM2
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1558lm // 14,2W // 110lm/W
LED technics (luminaire)
1146lm // 16,3W // 70lm/W
Technical data was measured in optimum conditions.
