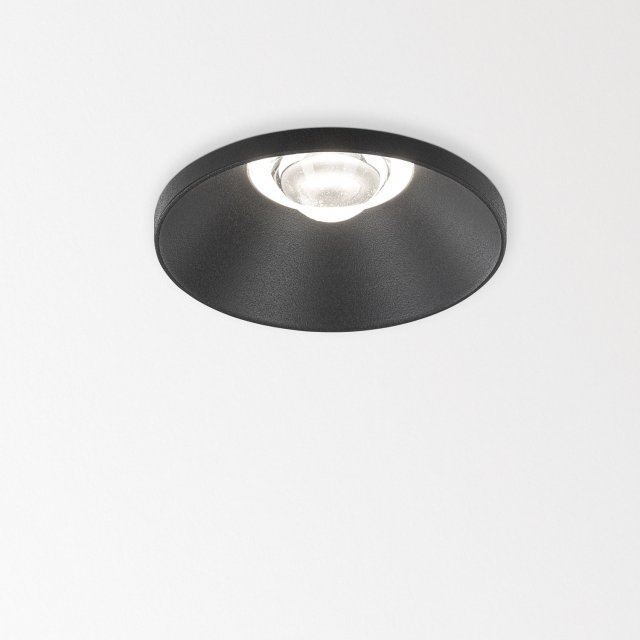

ARTUUR R SOFT 93060
ARTUUR ROUND
27712 XXX0
Beam angle
CRI
CCT
General
| Location | Indoor |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | round |
| Cutout size (mm) | 72 |
| Min. recessed depth (mm) | 70 |
| IP | IP20 |
| Weight (kg) | 0.4 |
| Adjustability | non adjustable |
| Information | LENS WFL-60°
EXCL.DIMMABLE LED POWER SUPPLY 350mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | E |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 6W / CRI>90 (R9: 50) / 3000K-1800K / 623lm |
| TM-30 Values | Rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 623lm // 6W // 105lm/W |
| LED technics (luminaire) | 354lm // 7W // 51lm/W |
Additional
| Requirements | LED POWER SUPPLY 350mA-DC DIM |
| Options | MOUNTING KIT TRIMLESS O.F.A. ARTUUR R |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
-
-
-
-
-
-
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
