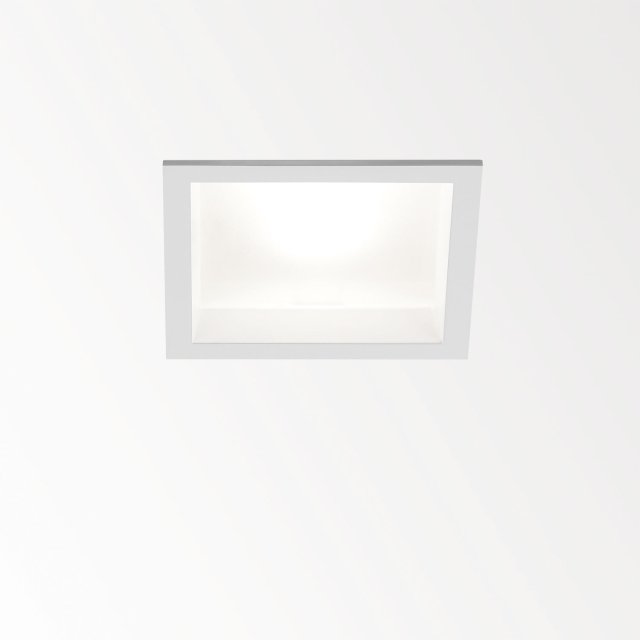

CARREE GT LED 9-SOFT S1 W
White - 202 49 1902 W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K-1800K |
| Fixation | Ceiling |
| Installation | Recessed |
| Cutout shape | square |
| Cutout size (mm) | 75 x 75 |
| Min. recessed depth (mm) | 110 |
| Thickness of mounting surface (mm) | max.35 |
| IP | IP44/20-20/20 |
| Weight (kg) | 0.4 |
| Adjustability | non adjustable |
| Information | REFLECTOR FL-40°
EXCL.DIMMABLE LED POWER SUPPLY 650mA-DC |
Electrical
| Class | III |
| Dimming type | depending on power supply |
| Energy class | F |
Lightsource
| Light source | LED |
| LED information | LED array 9,5W / CRI>90 / 2700K-1800K / 760lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LED technics (light source) | 760lm // 9,5W // 82lm/W |
| LED technics (luminaire) | 371lm // 10,9W // 34lm/W |
Additional
| Requirements | DIMMABLE LED POWER SUPPLY 650mA-DC |
| Options | PLASTERKIT 161
CONCRETE BOX 161
MOUNTING KIT 75 |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Ceiling compatibility
Please find an overview of the suitable ceiling types for this specific product.
Ceiling Type
Mounting kit
-
-
Finish your specifications
Use the information listed below to complete your product
requirement
LED power supplies
| Product name | Voltage | Class | Dimming type | IP | Cutout shape | Cutout size | max. devices / supply | ||
|---|---|---|---|---|---|---|---|---|---|
 | LED POWER SUPPLY MULTI-POWER COMPACT WDL | 220-240V | II | WDL = wireless dimmable | IP20 | round | 54 | 3 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM7 | 110-240V | II | 1-10V or push button | IP20 | round | 55 | 2(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 82 | 4 | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER DIM5 | 110-240V | II | DALI | IP20 | round | 72 | 3(1) | Add to pinlist |
 | LED POWER SUPPLY MULTI-POWER HV DIM9 | 110-240V | II | 1-10V or DALI or push button | IP20 | round | 84 | 6(4) | Add to pinlist |
