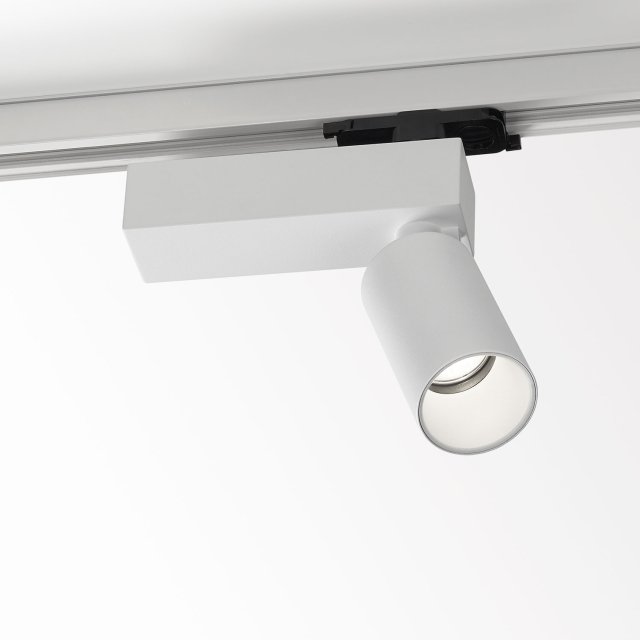

SPY ON 93033 ADM B

Black - 414 361 811 932 ADM B

Beam angle

CRI

CCT

Interesting projects

General

Location	Indoor
IP	IP20
Weight (kg)	0.7
Adjustability	0° to 90° swiveling, 355° rotatable
Information	INCL.1 x REFLECTOR FL-33° INCL.1 x 3F MULTI ADAPTER INCL.LED POWER SUPPLY 500mA-DC

Electrical

Class	I
Dimming type	non-dimmable

Lightsource

Light source	LED
LED information	LED array 10,4W / CRI>90 (R9: 52) / 3000K / 1128lm
TM-30 Values	rf: 90 / Rg: 99
SDCM	SDCM2
Riskgroup	RG1
LM80	L90B10 > 50000
LED technics (light source)	1128lm // 10,4W // 109lm/W
LED technics (luminaire)	580lm // 12W // 48lm/W

Additional

Requirements	SPY TUBE TRACK 3F DIM
Accessories	HONEYCOMB / LENS / GLASS 50 SPY PUNK SLEEVE

Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Installation manual

Compatibele tracks

TRACK 3F DIM H

TRACK 3F DIM H 3m B

Product name	Reference number
TRACK 3F DIM H 1m	200 14 410
TRACK 3F DIM H 2m	200 14 420
TRACK 3F DIM H 3m	200 14 430

Black

White

Finish colours

TRACK 3F DIM IN

TRACK 3F DIM IN 3m B

Product name	Reference number
TRACK 3F DIM IN 1m	200 13 410
TRACK 3F DIM IN 2m	200 13 420
TRACK 3F DIM IN 3m	200 13 430

Black

White

Finish colours

TRACK 3F DIM ON

TRACK 3F DIM ON 3m B

Product name	Reference number
TRACK 3F DIM ON 1m	200 12 410
TRACK 3F DIM ON 2m	200 12 420
TRACK 3F DIM ON 3m	200 12 430

Black

White

Finish colours
