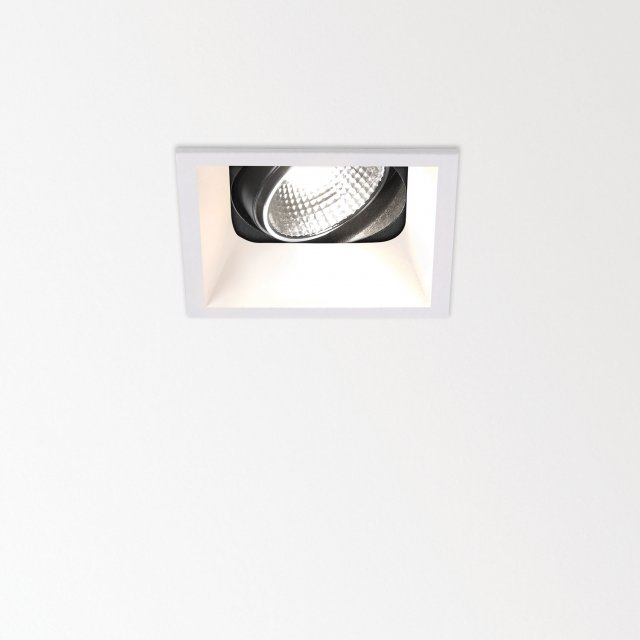

ENTERO SQ-S 92720 B
New

ENTERO SQ-S 93020 B

Black - 28502 9320 B
CRI
Beam angle
CCT
Red Dot Design Award 2022

General

Location
Indoor
CCT
3000K
Fixation
Ceiling
Installation
Recessed
Cutout shape
square
Cutout size (mm)
76 x 76
Max. recessed depth (mm)
100
Thickness of mounting surface (mm)
12,5 or 25
IP
IP20
Weight (kg)
0.24
Adjustability
0° to 30° swiveling, 355° rotatable
Information
REFLECTOR FL-20° EXCL.LED POWER SUPPLY 350-700mA-DC Optional REFLECTORS 30° & 45° available

Electrical

Class
III
Dimming type
depending on type of external power supply
Energy class
E
Certificates
CB, ENEC

Lightsource

Light source
LED
LED information
LED array 5,8-12,4W / CRI>90 (R9: 52) / 3000K / 787-1467lm
TM-30 Values
Rf: 90 / Rg: 99
SDCM
SDCM1
Riskgroup
RG1
LM80
L90B10 > 50000
LED technics (light source)
1467lm // 12,4W // 118lm/W
LED technics (luminaire)
1140lm // 14W // 80lm/W

Additional

Remarks
Max.500mA when using accessories
Requirements
LED POWER SUPPLY 350 / 500 / 700mA-DC DIM
Accessories
ENTERO S HONEYCOMB ENTERO S LINEAR SPREAD LENS ENTERO S SPREAD LENS ENTERO S SOFTENING LENS ENTERO S GLASS SBL
Technical data was measured in optimum conditions.

Downloads

Following downloads are available:

Ceiling compatibility

Please find an overview of the suitable ceiling types for this specific product.

Ceiling Type
Mounting kit
systemceiling.svg
system ceiling
-
stretch_ceiling.svg
stretched ceiling
-
plasterboard.svg
plasterboard
-
stucanet.svg
stucanet
-
wood.svg
wood
-
