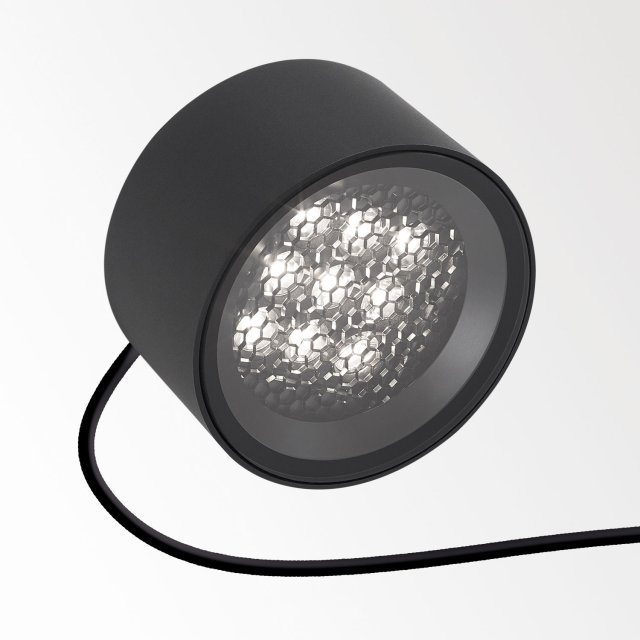

FRAX MB 93026 HONEYCOMB PGR
Pine Green - 26010 9370 PGR
CRI
Beam angle
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor, Wall |
| Installation | Surface mounted |
| IP | IP65 |
| IK | IK08 |
| Weight (kg) | 2.1 |
| Adjustability | 0° to 120° swiveling, 360° rotatable |
| Information | 9 x LENS SP-14°
INCL.LED POWER SUPPLY 900mA-DC
INCL.BEAM LENS 26°
INCL.HONEYCOMB
INCL.1 x CABLE H05 RN-F 3 x 1mm² 2m |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | non-dimmable |
| Energy class | E |
| Certificates | CB |
Lightsource
| Light source | LED |
| LED information | LED cluster 23,4W / CRI>90 (R9: 64) / 3000K / 2574lm |
| TM-30 Values | Rf: 91 / Rg: 101 |
| SDCM | SDCM3 |
| Riskgroup | RG2 |
| LM80 | L80 > 120000 |
| LED technics (light source) | 2574lm // 23,4W // 109lm/W |
| LED technics (luminaire) | 1441lm // 27W // 54lm/W |
Additional
| Requirements | FRAX BRACKET

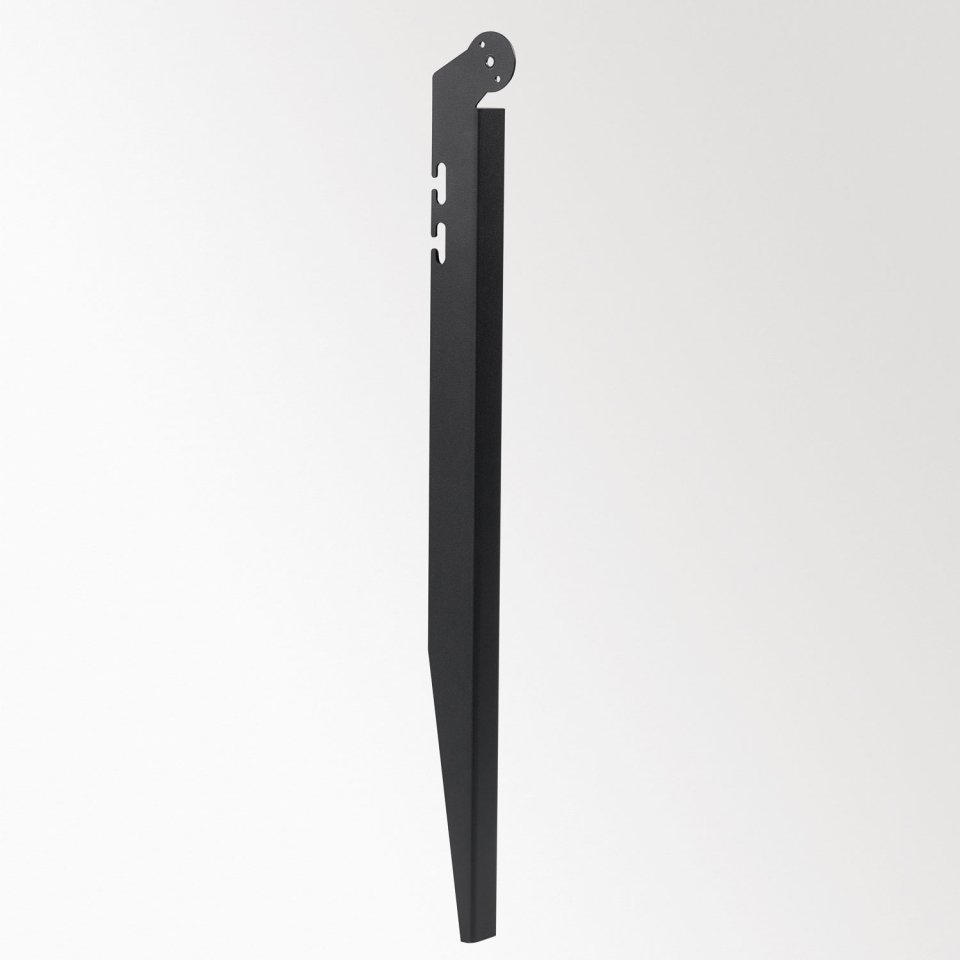

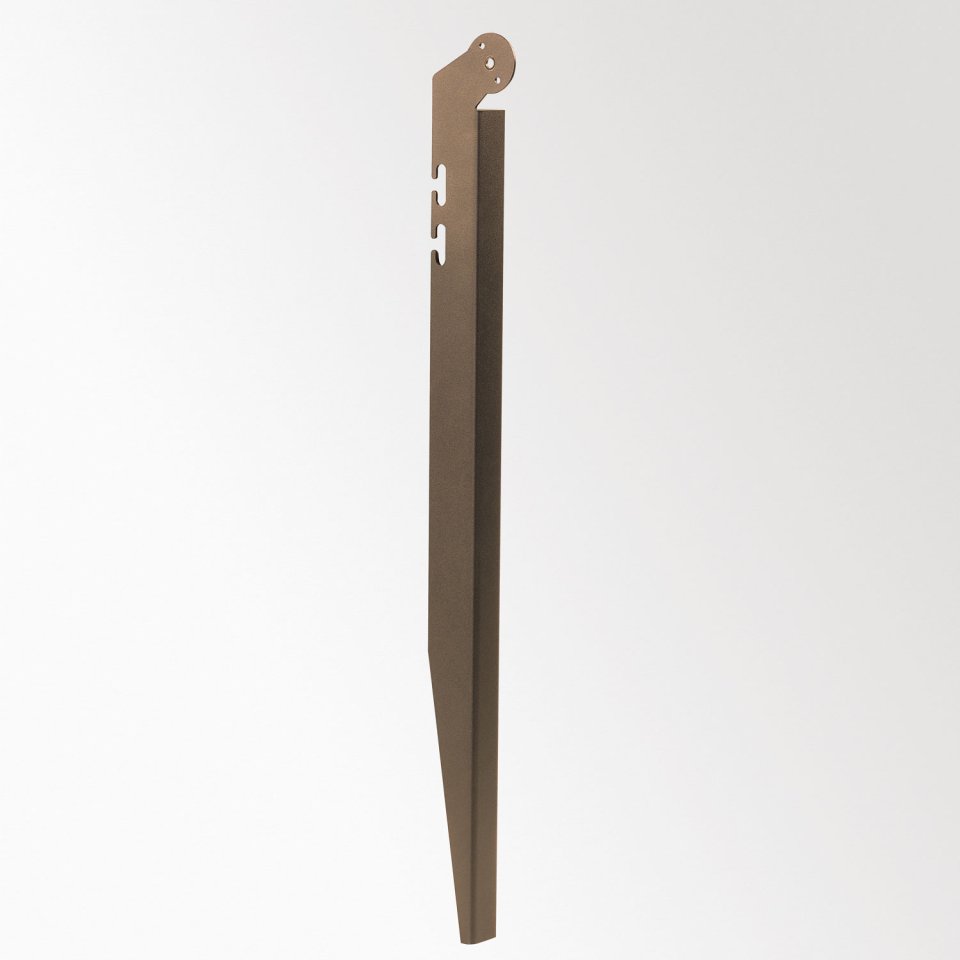

FRAX PIN

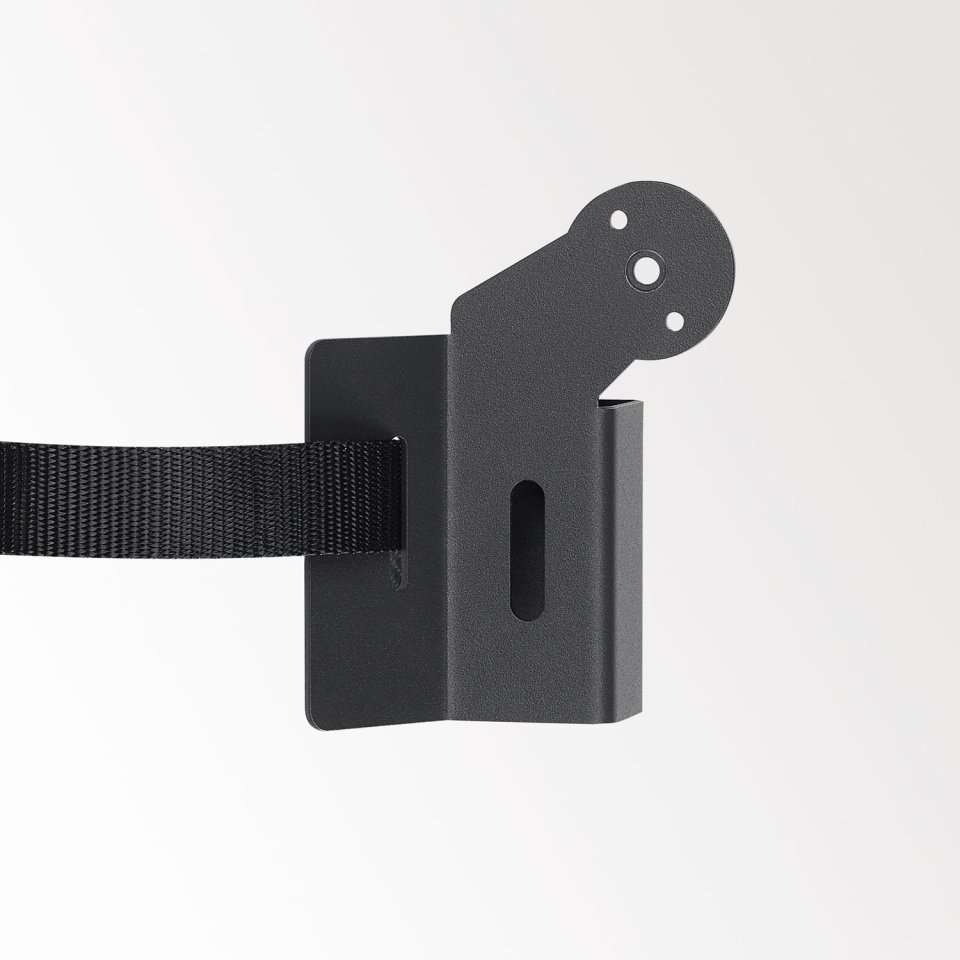

FRAX STRAP |
| Options | FRAX ANTI VANDAL SCREWS |
| Accessories | FRAX M KAP |
Technical data was measured in optimum conditions.
