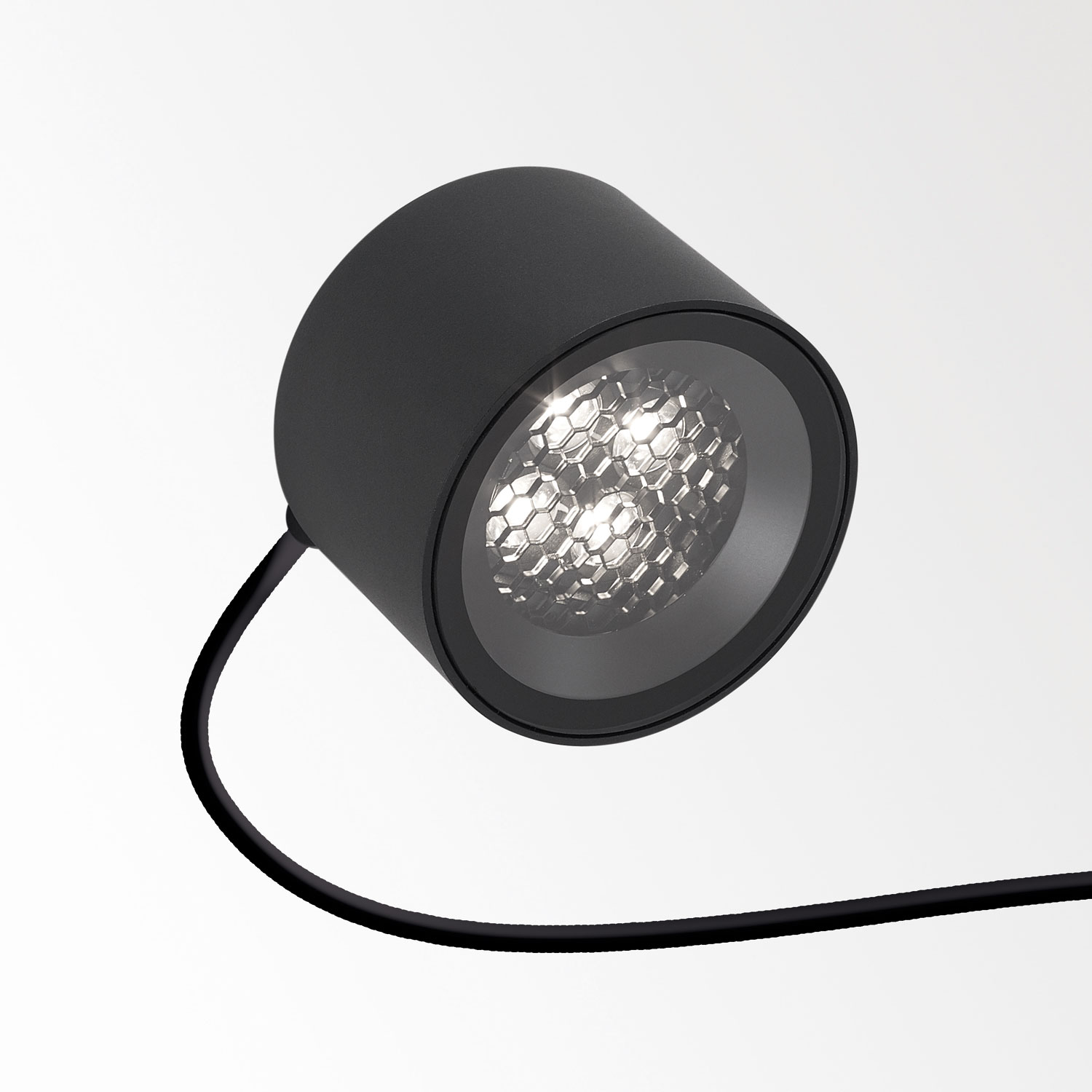

FRAX SB 93014 HONEYCOMB N

FRAX SB 93047 HONEYCOMB N

Anthracite (Dark Grey) - 26000 9390 N
CRI
Beam angle
CCT
Red Dot Design Award 2022

General

Location
Outdoor
CCT
3000K
Fixation
Floor, Wall
Installation
Surface mounted
IP
IP65
IK
IK06
Weight (kg)
1.3
Adjustability
0° to 120° swiveling, 360° rotatable
Information
4 x LENS SP-14° INCL.LED POWER SUPPLY 700mA-DC INCL.BEAM LENS 47° INCL.HONEYCOMB INCL.1 x CABLE H05 RN-F 3 x 1mm² 2m

Electrical

Voltage
220-240V / 50-60Hz
Class
I
Dimming type
non-dimmable
Energy class
D
Certificates
CB

Lightsource

Light source
LED
LED information
LED cluster 8W / CRI>90 (R9: 64) / 3000K / 928lm
TM-30 Values
Rf: 91 / Rg: 101
SDCM
SDCM3
Riskgroup
RG2
LM80
L80 > 120000
LED technics (light source)
928lm // 8W // 116lm/W
LED technics (luminaire)
473lm // 9W // 51lm/W

Additional

Requirements
FRAX BRACKET FRAX PIN FRAX STRAP
Options
FRAX ANTI VANDAL SCREWS
Accessories
FRAX S KAP
Technical data was measured in optimum conditions.
