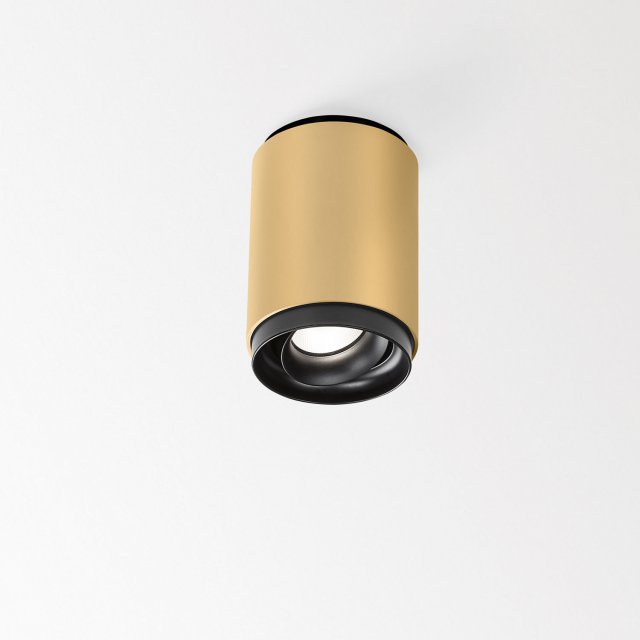

LINK S 1 93033 DIM8 FG
Flemish Gold - 13816 9328 FG
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 0.8 |
| Adjustability | 0° to 30° swiveling, 355° rotatable |
| Information | REFLECTOR FL-33°
INCL.DIMMABLE LED POWER SUPPLY 350mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | mains (phase cut-off) |
| Energy class | E |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 7,1W / CRI>90 (R9: 52) / 3000K / 812lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 812lm // 7,1W // 115lm/W |
| LED technics (luminaire) | 597lm // 8,2W // 73lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Miscellaneous control equipment
| Product name | Voltage | Class | Dimming type | ||
|---|---|---|---|---|---|
 | WIRELESS CONTROL DIM8 | 100-240V | II | WDL = wireless dimmable | Add to pinlist |
