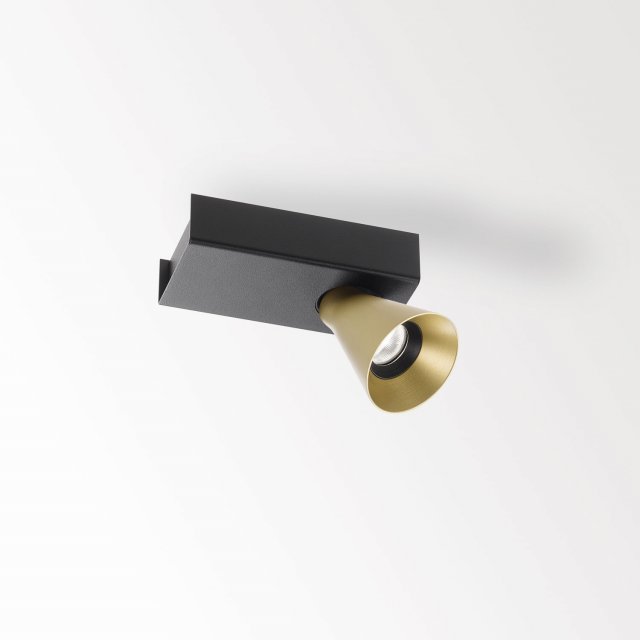

PION ON 1 93037 DIM8 GC-B
Gold Colored-Black - 26612 9338 GC-B
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 0.7 |
| Adjustability | 0° to 45° swiveling, 355° rotatable |
| Information | REFLECTOR FL-37°
INCL.DIMMABLE LED POWER SUPPLY 350mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | mains (phase cut-off) |
| Energy class | D |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 5,8W / CRI>90 (R9: 52) / 3000K / 734lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 734lm // 5,8W // 127lm/W |
| LED technics (luminaire) | 591lm // 6,7W // 89lm/W |
Additional
| Accessories | PION TUBE |
Technical data was measured in optimum conditions.
