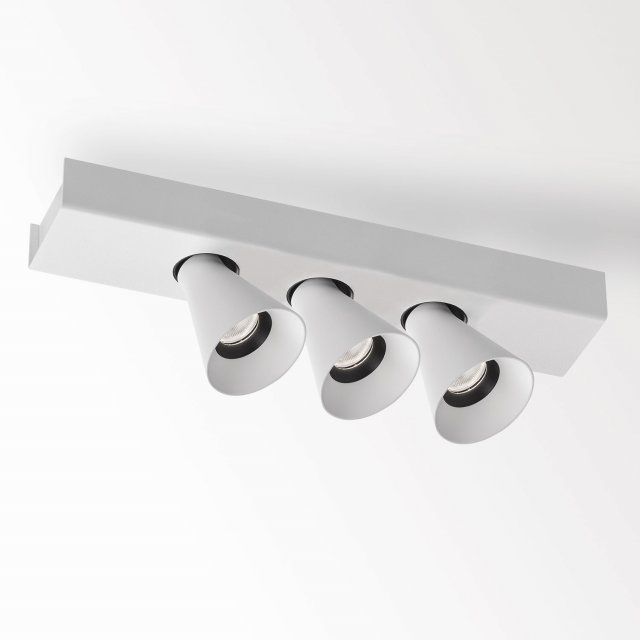

PION ON 3 92737 DIM8 W-W
White-White - 26614 9238 W-W
CRI
Beam angle
CCT
General
| Location | Indoor |
| CCT | 2700K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP20 |
| Weight (kg) | 1.5 |
| Adjustability | 0° to 45° swiveling, 355° rotatable |
| Information | 3 x REFLECTOR FL-37°
INCL.DIMMABLE LED POWER SUPPLY 350mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | mains (phase cut-off) |
| Energy class | D |
| Certificates | CB, ENEC |
Lightsource
| Light source | LED |
| LED information | 3 x (LED array 5,8W / CRI>90 (R9: 60) / 2700K / 702lm) |
| TM-30 Values | rf: 89 / Rg: 100 |
| SDCM | SDCM1 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 2106lm // 17,4W // 121lm/W |
| LED technics (luminaire) | 1695lm // 20W // 85lm/W |
Additional
| Accessories | PION TUBE |
Technical data was measured in optimum conditions.
