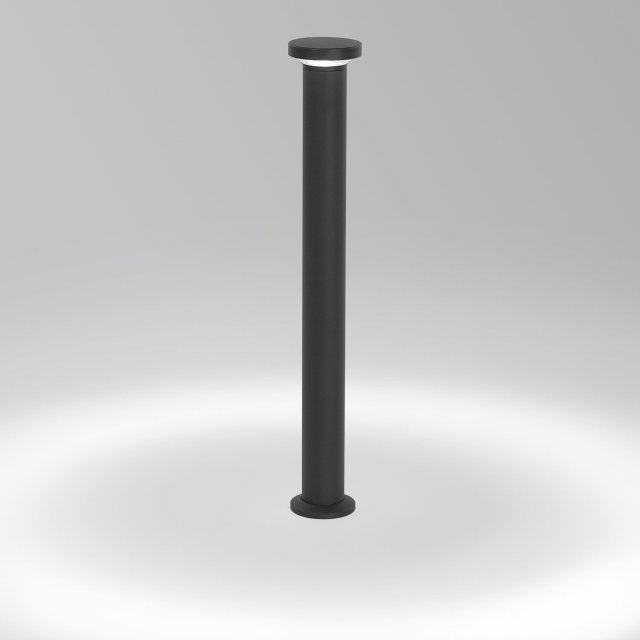

SPYKER II 65 CENTRIC 930 N
Anthracite - 20016 9300 N
CRI
CCT
General
| Location | Outdoor |
| CCT | 3000K |
| Fixation | Floor |
| Installation | Surface mounted |
| IP | IP55 |
| IK | IK08 |
| Weight (kg) | 1.5 |
| Adjustability | non adjustable |
| Information | INCL.LED POWER SUPPLY 350mA-DC |
Electrical
| Voltage | 120-240V / 50-60Hz |
| Class | II |
| Dimming type | non-dimmable |
| Energy class | E |
| Certificates | CB, EAC, ENEC |
Lightsource
| Light source | LED |
| LED information | LED array 7,1W / CRI>90 (R9: 52) / 3000K / 812lm |
| TM-30 Values | rf: 90 / Rg: 99 |
| SDCM | SDCM2 |
| Riskgroup | RG1 |
| LM80 | L90B10 > 50000 |
| LED technics (light source) | 812lm // 7,1W // 115lm/W |
| LED technics (luminaire) | 380lm // 8,2W // 47lm/W |
Additional
| Options | PIN 11
CBOX
IP68 CONNECTION KIT
IP68 CONNECTOR 3P |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Pins and plates for bollards
Waterproof connection parts
| Product name | Information | ||
|---|---|---|---|
 | CBOX | INCL.2 x PG13,5 / 1 x PG11 | Add to pinlist |
 | IP68 CONNECTION KIT | CABLE Ø 7,5-10 mm MAX.3 x 4mm² 4A 250V-AC | Add to pinlist |
 | IP68 CONNECTOR 3P | CABLE Ø 7,5-12 mm MAX.3 x 1,5mm² 4A 250V-AC | Add to pinlist |
