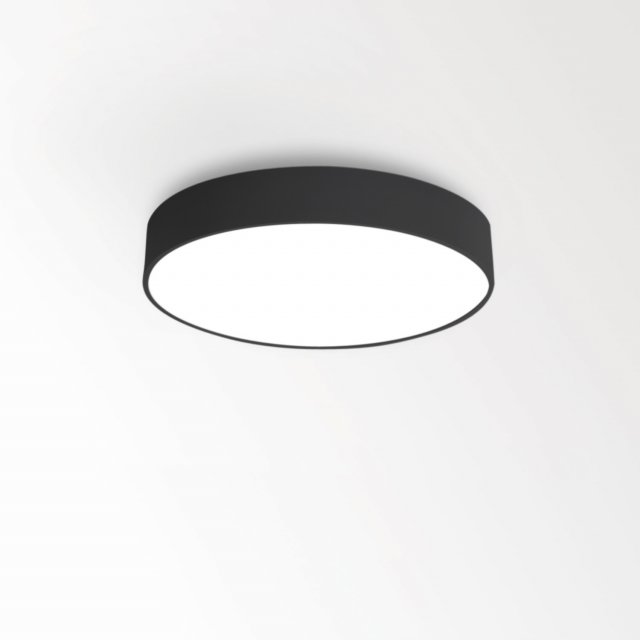

SUPERNOVA XS PIVOT 330 DIM5 B
Black - 274 88 3224 ED5 B
CRI
CCT
General
| Location | Indoor |
| CCT | 3000K |
| Fixation | Ceiling |
| Installation | Surface mounted |
| IP | IP40 |
| Weight (kg) | 2.6 |
| Adjustability | 0° to 45° swiveling, 360° rotatable |
| Information | INCL.PC SBL
INCL.DIMMABLE LED POWER SUPPLY 1050mA-DC |
Electrical
| Voltage | 220-240V / 50-60Hz |
| Class | I |
| Dimming type | DALI |
| Energy class | E |
Lightsource
| Light source | LED |
| LED information | LED cluster 22W / CRI>80 / 3000K / 2600lm |
| SDCM | SDCM3 |
| Riskgroup | RG0 |
| LM80 | L70 > 60000 |
| LED technics (light source) | 2600lm // 22W // 118lm/W |
| LED technics (luminaire) | 1854lm // 25,3W // 73lm/W |
Technical data was measured in optimum conditions.
Downloads
Following downloads are available:
Finish your specifications
Use the information listed below to complete your product
optional
Miscellaneous control equipment
| Product name | Voltage | Class | Dimming type | ||
|---|---|---|---|---|---|
 | WIRELESS CONTROL DIM5 | 220-240V | II | WDL = wireless dimmable | Add to pinlist |
